Product Description

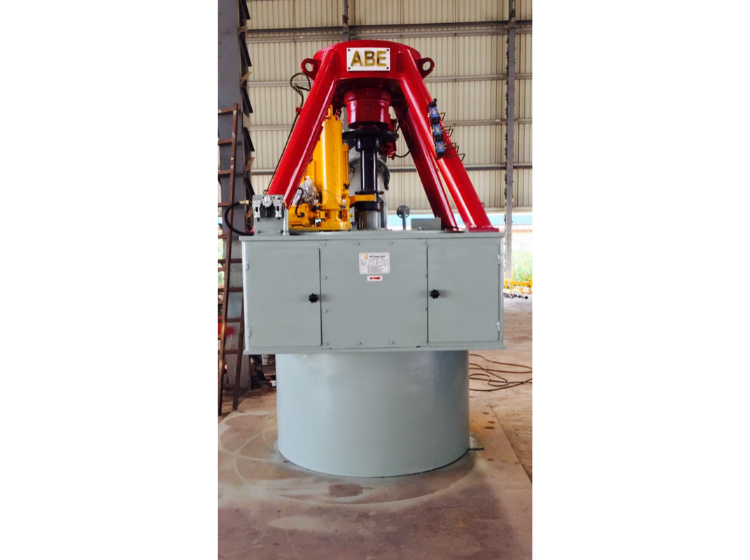

The AB Batch Type Centrifugal machine is designed to be low maintenance efficient and cost effective providing a high return for the user. The AB Batch centrifugal basket is made of high strength stainless steel. The high strength of the basket allows the drilling of large drainage holes and the machining of annular grooves on the inside of the basket.

Maintenance is reduced by minimizing the number of moving parts and the use of high strength alloys and non metallic, food grade components. The AB Batch centrifugal is available ranging from 1000 kg/ch. to 1750 kg /ch.

\
Project

Technical Specifications

Sr.No. Description Model ABB-1250 Model ABB-1500 Model ABB-1750
1 Type FAFB, Recycling Type FAFB, Recycling Type FAFB, Recycling Type
2 Capacity 1250 kg per charge 1500 kg per charge 1750 kg per charge
3 No. Of Cycles 18 to 20 cycles per hour 18 to 20 cycles per hour 18 to 20 cycles per hour
4 Lubrication Grease Grease Grease
5 Drive DC / AC Motor DC / AC Motor DC / AC Motor
6 Drive Rating 135 KW 135 KW 145 KW
7 Control Panel DC Drive / AC VFD DC Drive / AC VFD DC Drive / AC VFD
8 Enclosure S.P.D.P. S.P.D.P. S.P.D.P.
9 Protection IP – 23 / IP - 55 IP – 23 / IP - 55 IP – 23 / IP - 55
10 Cooling Type Forced air cooled ( by blower ) Forced air cooled ( by blower ) Forced air cooled ( by blower )
11 Type of coupling between motor and shaft Imported polyurethene star Imported polyurethene star Imported polyurethene star
12 Speeds:Charging,Spinning,Ploughing 150-300 RPM,1000-1200 RPM,50-80 RPM 150-300 RPM,1000-1200 RPM,50-80 RPM 150-300 RPM,1000-1200 RPM,50-80 RPM
